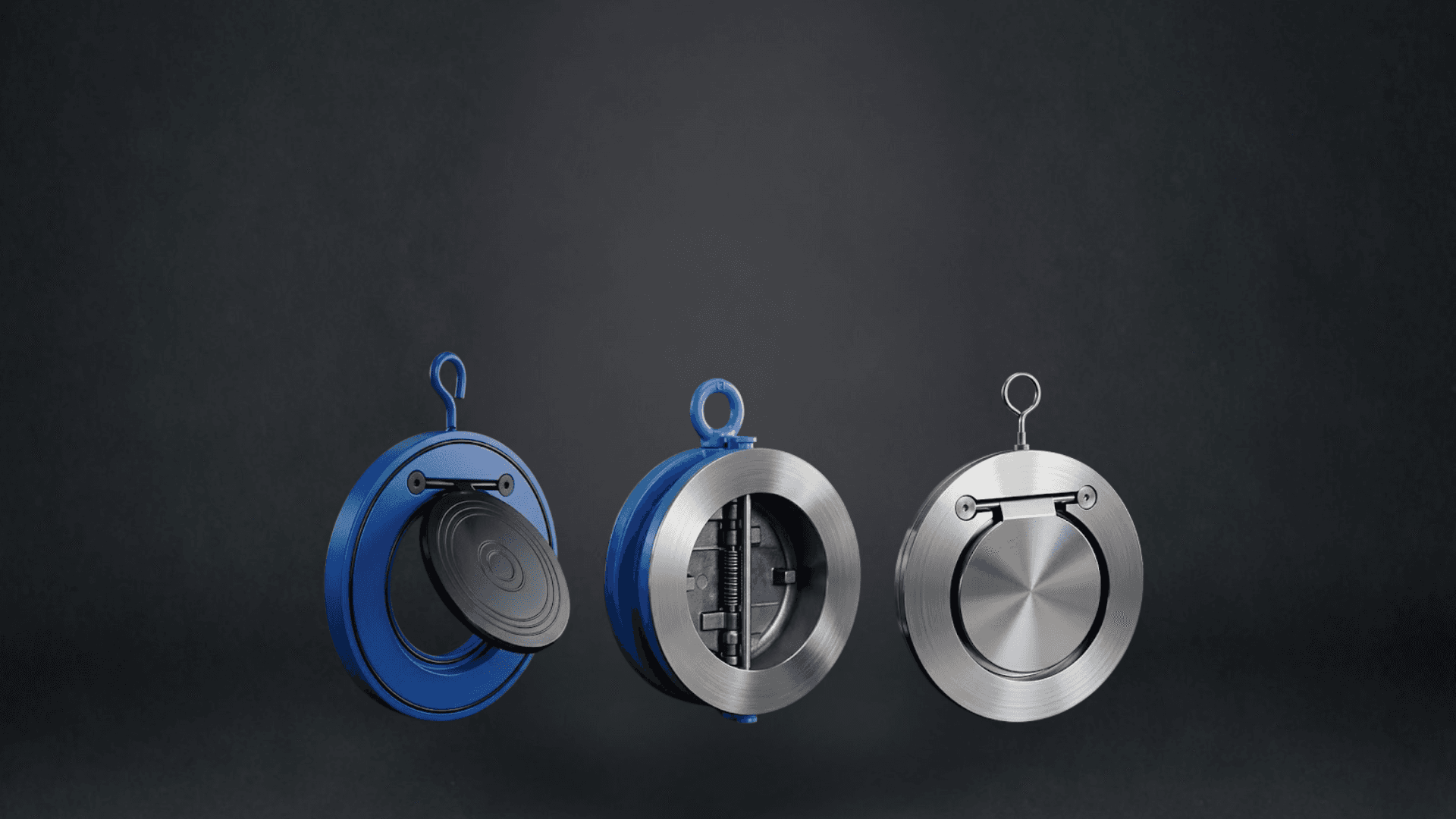

SINGLE / DUAL PLATE CHECK VALVES

Single and dual plate check valves are designed for compact installation and efficient backflow prevention. Maksfa Control manufactures high-performance plate check valves suitable for modern pipeline systems.

Technical Specifications:

Design Standard: API 6D / API 594 / BS 1868
Material Of Construction: CI, ASTM A216 WCB, ASTM A351 CF8, CF8M, CF3M
End Connections: Wafer / Flanged
Pressure Rating: 125# / 150# / PN10
Type: Single / Dual Plate (With Spring)
Size Range: 25 mm to 600 mm

Applications:

Compact piping systems, industrial flow systems
